VB.NET : Setup & Connecting to Remote MySQL Server

VB.NET Tutorial : How to create connection to Remote MySQL Database Server using TCP/IP Client and Server, How to Set up a remote MySQL database connection.

Connection to Remote MySQL Database - How to create a connection from a client Pc to a server database that in one Network? The database server is at 192.168.5.99 and the port number is 3306, Pc client have an ip 192.168.5.101, so the client and the server is at one Networking Area.

Please read :

1. Multi Client Server Chat Application TCP/IP Client/Server MultiThreaded
2. Client Server Chat Application TCP/IP Client/Server for One Client

How to Enable Remote Access To MySQL Database Server?

To can anyone to remote server database, we must setting up database server and the server (xampp) that can romoted by any client,

1. Setting Server Database

at your server, open following this URL : http://localhost:8080/phpmyadmin

Click on your Database > Privileges > and Add user account > OK

2. Setting Xampp Server

at the server PC, open your Xampp Control Panel > Config (Apache) > httpd.conf

Open your httpd.conf using notepad or other text editor, find this line "LoadModule vhost_alias_module modules/mod_vhost_alias.so", then remove the "#" characters and save it.

Open your httpd-xampp.conf.

At the last line, add this following command :


        AllowOverride AuthConfig
	Allow from all
        Require local
        ErrorDocument 403 /error/XAMPP_FORBIDDEN.html.var


Allow from all is using to allow all client connect with our server.

Create Connection to Remote MySQL Server

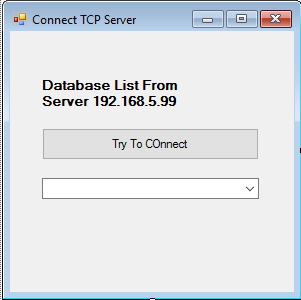

Open your visual studio and we will create new project "ConnectionTCP", and at the form1.vb add one comboBox, button and one label, just design it look like this

Module Connection (moduleConnection.vb)

Imports MySql.Data.MySqlClient ' we will make connection using ADO.NET
Module ModuleConnection
    Public conn As MySqlConnection ' declare our connection
    Sub openConnection()
        Dim server As String = "192.168.5.99" ' our server database
        Dim userID As String = "root" ' Server userid
        Dim password As String = "rahasia" ' server password
        'Dim databases As String = "" 'server database, i have a database, but dor this project we will
        ' not use the database

        Try
            Dim query As String = "Server=" & server & "; user id=" & userID & "; password=" & password & "; Convert Zero Datetime=True"
            conn = New MySqlConnection(query)
            If conn.State = ConnectionState.Closed Then
                conn.Open() ' open our connection
                MsgBox("Connection Success !")
            End If
        Catch ex As Exception
            MsgBox("connection filed !")
        End Try
    End Sub
End Module

Source Code Connection TCP (Form1.vb)

Imports MySql.Data.MySqlClient
Public Class Form1
    Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
        Try
            openConnection() ' open our connection
            ' query to show all database from our server
            Dim cmd As String = "SELECT DISTINCT TABLE_SCHEMA FROM information_schema.TABLES"
            Dim da As MySqlDataAdapter = New MySqlDataAdapter(cmd, conn)
            Dim dt As New DataTable ' we will use datatabel
            da.Fill(dt)

            ' enabling the list of database in the combobox
            ComboBox1.Enabled = True
            ComboBox1.Items.Clear()
            ComboBox1.Items.Add("== Select LIST Database ==")

            Dim i As Integer = 0
            While i < dt.Rows.Count
                ' add database list into combobox
                ComboBox1.Items.Add(dt.Rows(i)(0).ToString())
                i = i + 1
            End While
            ComboBox1.SelectedIndex = 0
            conn.Clone()
            dt.Dispose()
            da.Dispose()
        Catch ex As Exception
            MsgBox("Failed to connect with database server")
        End Try
    End Sub
End Class

Informations :

You can create CRUD Operations using Remote MySQL Database above, just configuration your server database and create connection to your CRUD Project, see crud Project here :

1. VB.NET SQLite Tutorials : CRUD (add,update,delete) Operations ADO.NET
2. GridView CRUD Operations in VB.NET using ADO.NET and MySQL Database
3. CRUD (Create,Read,Update,Delete) Operation Ms Access Database OleDB Connection
4. VB.NET (Create,Read,Update,Delete) Database SQL Server

Video Tutorial Connecting to Remote MySQL Server

Download Full Source code here
see you next lessons.
